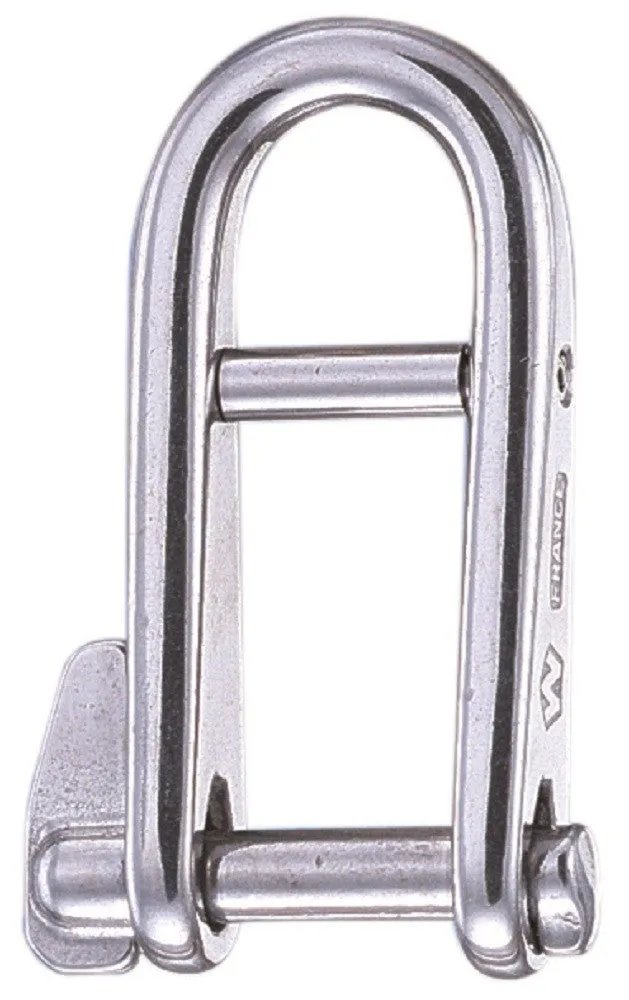

Dropped Forged HR Key Pin & Bar Shackles
Half turn opening Captive pin 'HR' stands for High Resistance. The 17.4 PH stainless steel that these shackles are forged from offers very high level mechanical performance characteristics.
| Part | Pin Diameter mm | A mm | B mm | D mm | Work kg | Break kg |
| WD-91432 | 5 | 37 | 13 | 12 | 480 | 1500 |
| WD-91433 | 6 | 45 | 16 | 15 | 600 | 2200 |
| WD-91434 | 8 | 59 | 21 | 20 | 960 | 3500 |
