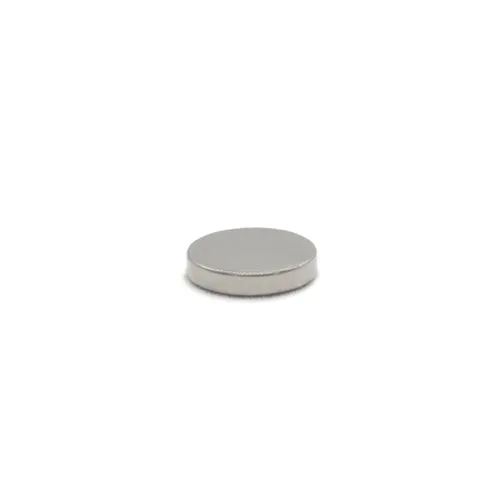

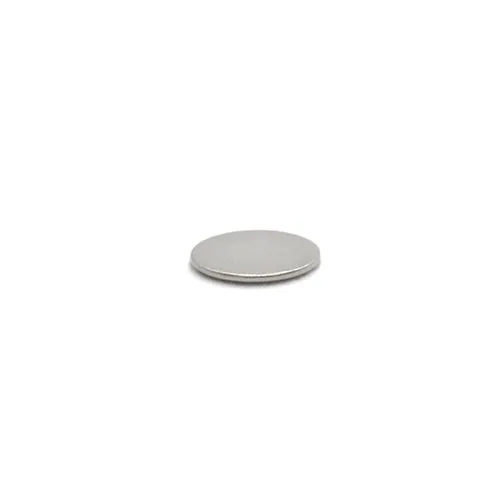

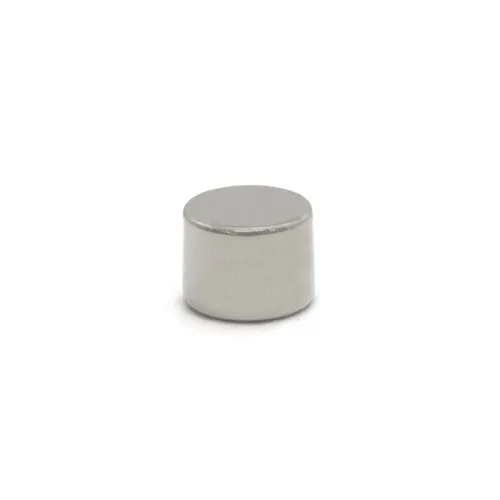

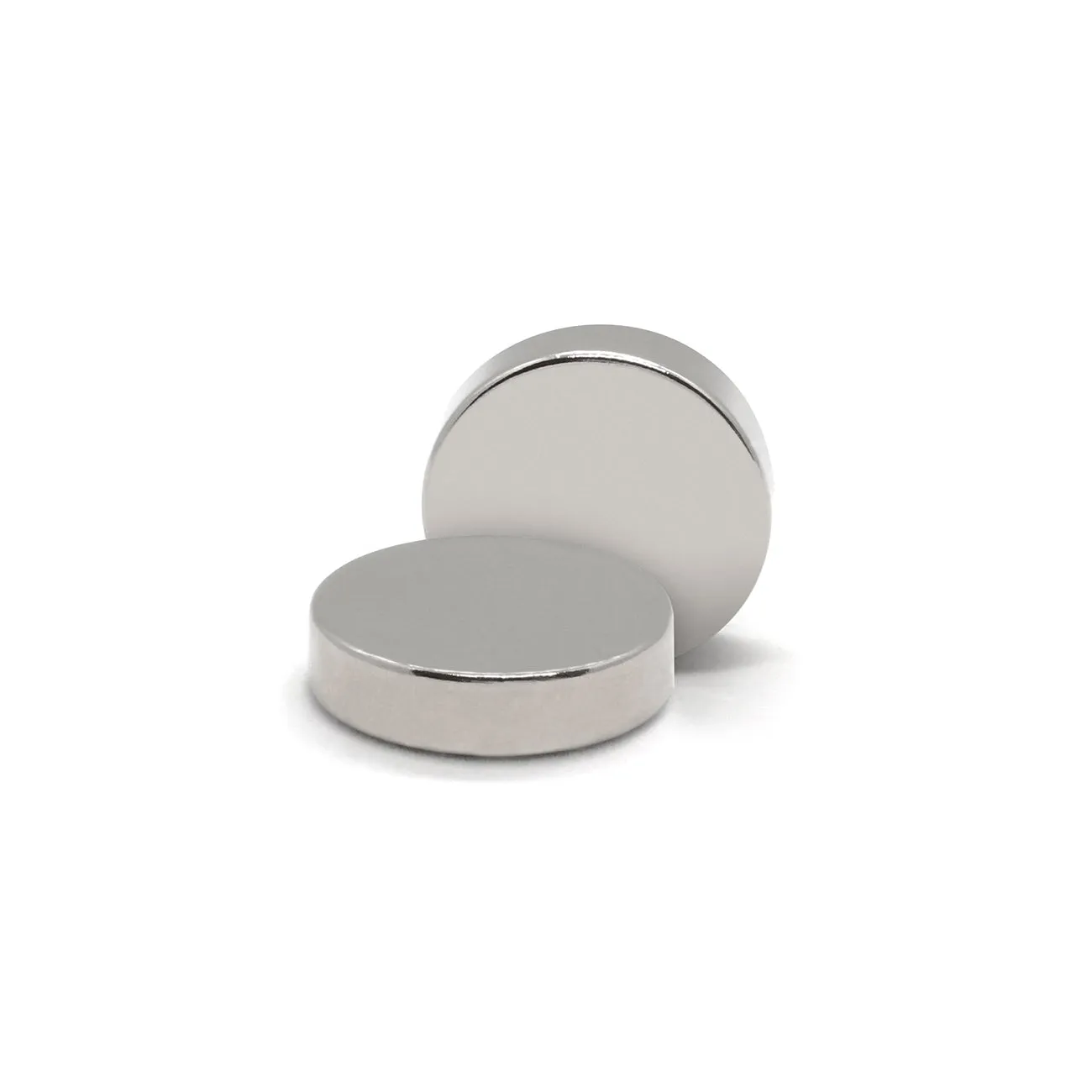

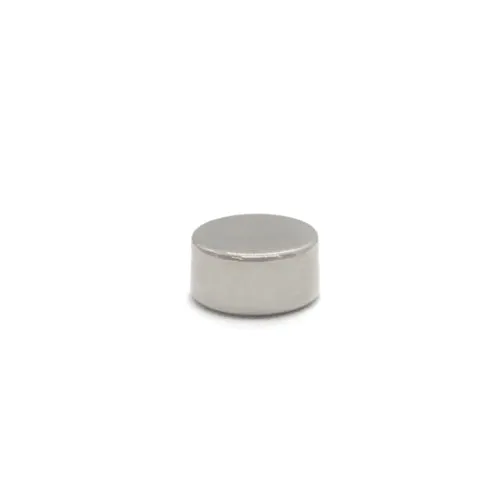

Strong Neodymium (NdFeB) disc rare earth magnet 1/2" (12.7mm) diameter.

This option is without adhesive face.

Grade : N42

Maximum working temperature : 176°F (80°C)

Tolerance: /- .004"

Magnetized axially through the thickness, poles on flat face, single pole, poles unmarked.

Each magnet is coated with 3 layers of nickel, copper and nickel (Ni-Cu-Ni plating) to improve corrosion resistance.

Thicknesses available with pull force per unit:

.0313" (1/32") holds 1.15 lb
.0625" (1/16") holds 3.10 lb
.0938" (3/32") holds 4.16 lb
.125" (1/8") holds 6.44 lb
.250" (1/4") holds 10.90 lb
.375" (3/8") holds 13.40 lb
.500" (1/2") holds 14.60 lb
.750" (3/4") holds 15.50 lb
1.00" (1") holds 22.30 lb
