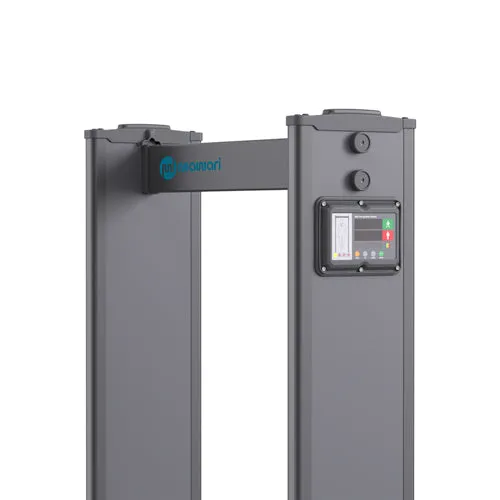

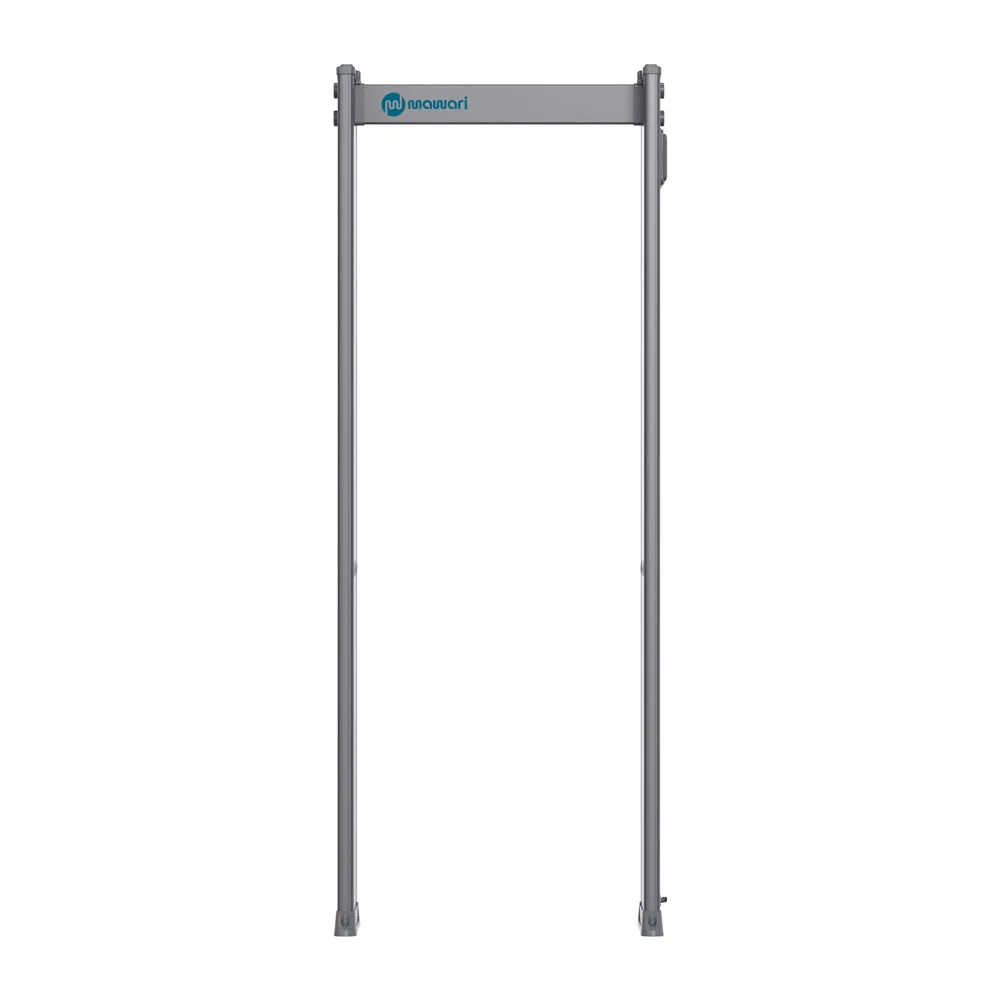

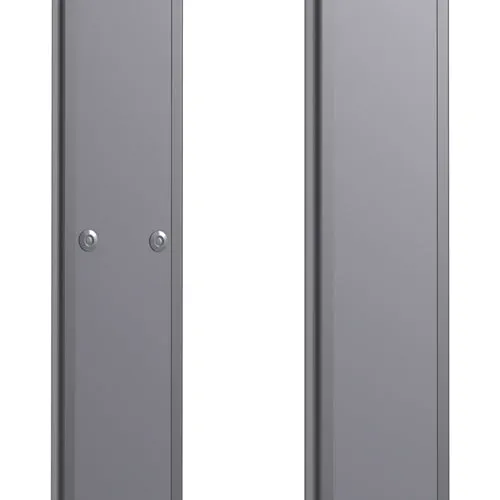

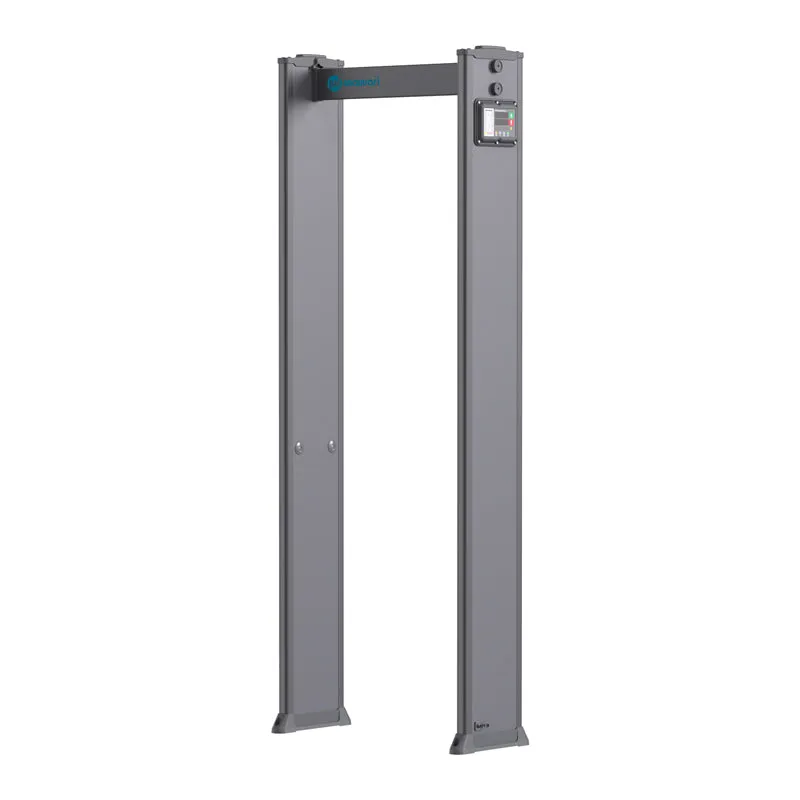

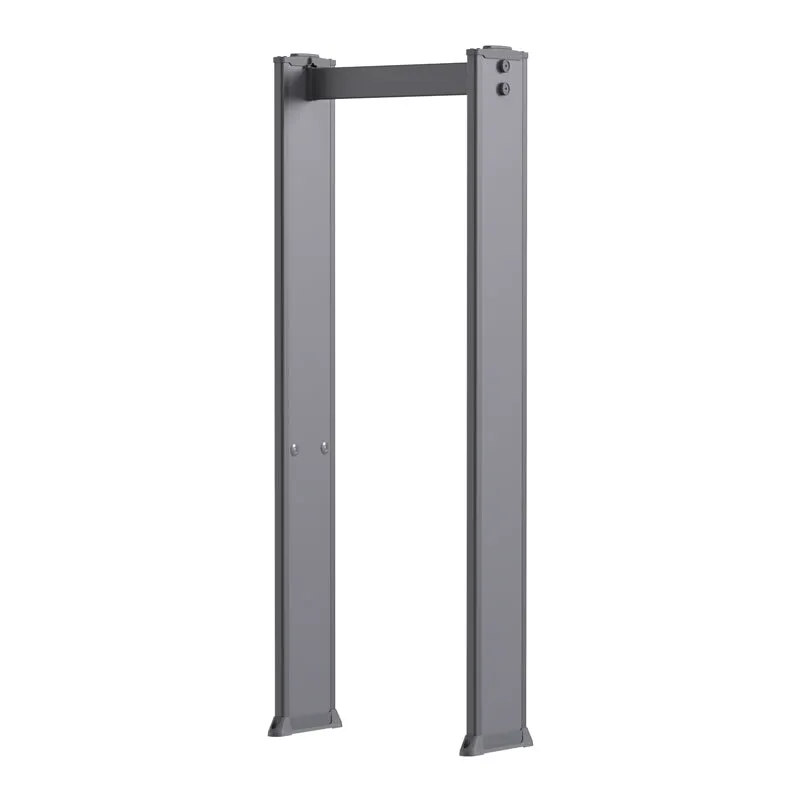

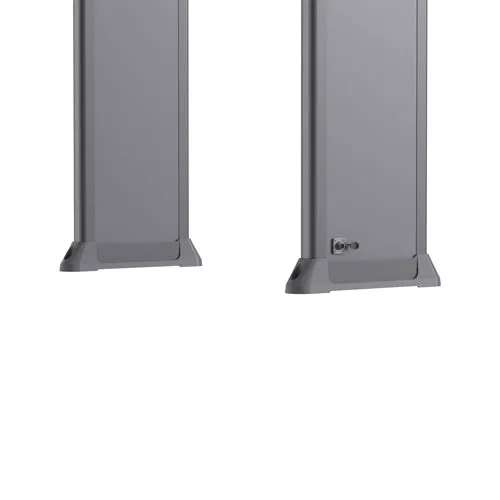

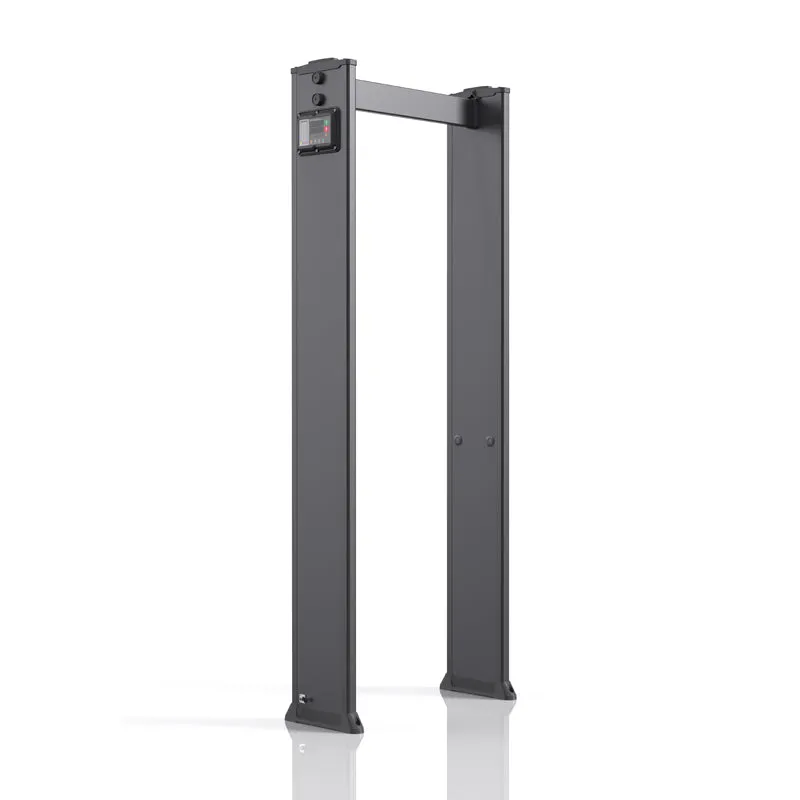

270SA/11 Indoor Walkthrough Metal Detector
- Digital display on the main control box, providing real-time data on people count, alarm frequency, and detected metal quantities.
- Suitable for wide range of scenarios, this security gate is perfect for indoor use, ensuring effective metal detection in diverse environments.
- Enjoy hassle-free setup with convenient installation, making it a practical choice for businesses and venues seeking efficiant security solutions.
| Technical parameter | |
| Product Model | 270SA/11 |
| Vertical Overall Dimension（mm） | 2165x828x349mm |
| Vertical Dimensions of Passage (mm) | 2017x720x278mm |
| Package Size (mm) | 2240x500x160mm |
| Net Weight/Gross Weight | 24kgs/30kgs |
| Detection Zones | 3/6/9/11/18 zones |
| Working Voltage | AC90V～264V 50／60Hz |
| Working Power | 12W |
| Operating Frequency Range | 0-99 frequency bands |
| Working Environment Temperature | -20℃～65℃ |
| Installation Environment | 100cm wide * 200cm long (minimum range without metal) |
| Accuracy Range of Metal Objects | Maximum sensitivity ≥ 30g metal |
