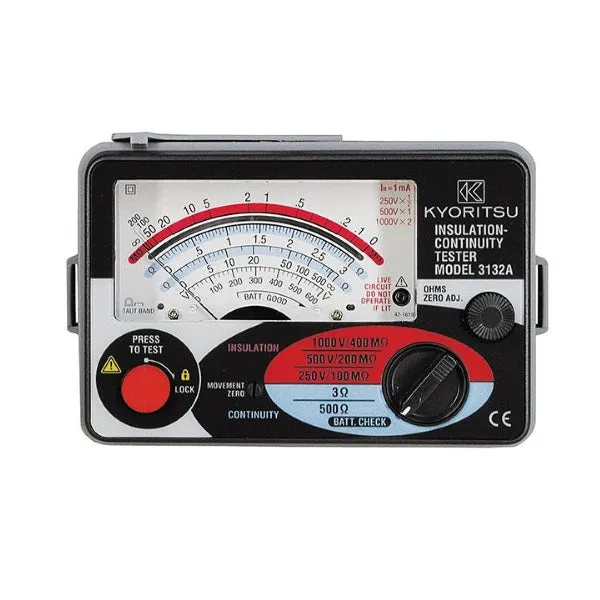

Name: Kyoritsu 3132A Analogue Insulation / Continuity Tester
SKU: 510090

Kyoritsu 3132A Analogue Insulation / Continuity Tester

$ 62.78

$ 81.61

Save: $ 18.83

Title:

Unavailable

Please select combo product attributes

The combo subtotal is $,SAVE$

Dust and drip proof construction. (designed to IEC 60529 IP54)
Designed to meet IEC 61010-1 and IEC 61557 safety standard.
1mA rated test current at the minimum resistance.
200mA measuring current on continuity testing.
Automatic discharge of circuit capacitance. (Any charge stored in the circuit under test will be automatically discharged after testing.)
Live circuit warning buzzer and neon lamp.
Small and lightweight. Shock resistant new case material.
AC voltmeter with linear, easy-to-read scale.
Operates on AA, R6 Ã 6 dry batteries.

Test voltage	250V/500V/1000V
Measuring ranges (Mid-scale value)	100MΩ/200MΩ/400MΩ (1MΩ) (2MΩ) (4MΩ)
Output voltage on open circuit	Rated test voltage 20%, -0%
Nominal current	1mA DC min.
Output short circuit current	1 - 2mA DC
Accuracy	0.1 - 10MΩ/0.2 - 20MΩ/0.4 - 40MΩ (Accuracy Guaranteed Ranges) ±5% of indicated value

Measuring ranges (Mid-scale value)	3Ω/500Ω (1.5Ω) / (20Ω)
Output voltage on open circuit	4.1V DC approx.
Measuring current	210mA DC min.
Accuracy	±1.5% of scale length

AC Voltage	0 - 600V AC
Accuracy	±5% of scale length

Safety Standard	IEC 61010-1 CAT III 600V Pollution Degree 2 IEC 61010-2-031 IEC 61557-1/2/4
IP Rating	IEC 60529-IP54
EMC Standard	IEC 61326-1
Power source	R6 (AA) (1.5V) × 6
Dimensions	106(L) × 160(W) × 72(D)mm
Weight	560g approx.
Included Accessories	7122B (Test leads) Pouch for test leads 8923 (F500mA/600V fuse) × 2 R6 (AA) × 6 9121 (Shoulder Strap) Instruction Manual
