description

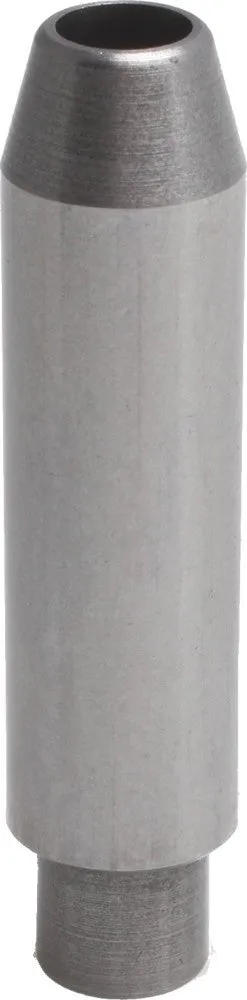

KPMI R&D has produced a proprietary cast iron blend that thrives in the tough operating conditions of todays engines. KMPIs certified cast iron provides excellent wear resistance and a superior guide bore finish that is easy on valve stems KPMI R&D has produced a proprietary cast iron blend that thrives in the tough operating conditions of todays engines. KMPIs certified cast iron provides excellent wear resistance and a superior guide bore finish that is easy on valve stems Outside Dia. : (G): 0.5620in. / Std. A: 0.650in. B: 0.700in. C: 1.150in. D: 1.450in. E: 0 .615in. F: 0.3098in. Note: Special shouldered guide, accepts 0.600in. valve lift. 0.420in. guide top accepts KPMI OEM style seal 20-20620, Steel Clad Viton seal 20-2015, and Solid White PC Style Seal 20-2009.

fitment

• FLH Electra Glide 1985
• FLHR Road King 1994-2004
• FLHRCI Road King Classic 1998-2004
• FLHRI Road King 1996-1997
• FLHRI Road King 2000-2004
• FLHRS Road King Custom 2004
• FLHRSI Road King Custom 2004
• FLHS Electra Glide Sport 1987-1993
• FLHT Electra Glide Standard 1986-1987
• FLHT Electra Glide Standard 1995-2004
• FLHTC Electra Glide Classic 1984-2004
• FLHTCI Electra Glide Classic 1996-2004
• FLHTCU Electra Glide Ultra Classic 1989-1997
• FLHTCUI Electra Glide Ultra Classic 1995-2004
• FLHTI Electra Glide Standard 2003-2004
• FLHX Electra Glide Special 1985
• FLST Heritage Softail 1986-1990
• FLSTC Heritage Softail Classic 1988-2004
• FLSTCI Heritage Softail Classic 2001-2004
• FLSTF Fat Boy 1990-2004
• FLSTFI Fat Boy 2001-2004
• FLSTN Heritage Softail Nostalgia 1993
• FLSTN Heritage Softail Special 1994-1996
• FLSTS Heritage Springer 1997-2003
• FLSTSI Heritage Springer 2001-2003
• FLTC Tour Glide Classic 1984-1991
• FLTCU Tour Glide Ultra Classic 1989-1995
• FLTCUI Tour Glide Ultra Classic 1996
• FLTR Road Glide 1998-2002
• FLTRI Road Glide 1998-2004
• FXD Dyna Super Glide 1995-2004
• FXDB-D Dyna Glide Daytona 1992
• FXDB-S Dyna Glide Sturgis 1991
• FXDC Super Glide Custom 1992
• FXDI Dyna Super Glide 2004
• FXDL Dyna Low Rider 1993-2004
• FXDLI Dyna Low Rider 2004
• FXDS-Conv Dyna Convertible 1994-2000
• FXDWG Dyna Wide Glide 1993-2004
• FXDWGI Dyna Wide Glide 2004
• FXDX Dyna Super Glide Sport 1999-2004
• FXDXI Dyna Super Glide Sport 2004
• FXDXT Dyna Super Glide T-Sport 2001-2003
• FXEF Fat Bob 1985
• FXLR Low Rider Custom 1987-1994
• FXR Super Glide II 1986-1994
• FXRC Low Rider Chrome 1985
• FXRC Low Rider Chrome 1987
• FXRD Sport Glide Grand Touring 1986
• FXRDG Disc Glide 1984
• FXRS Low Glide 1984-1992
• FXRS-Conv Low Rider Sport Convertible 1990-1993
• FXRS-SP Low Rider Sport 1986-1993
• FXRT Sport Glide 1984-1992
• FXSB Low Rider - Belt 1985
• FXST Softail Standard 1984-1990
• FXST Softail Standard 1999-2004
• FXSTB Night Train 1999-2004
• FXSTBI Night Train 2001-2004
• FXSTC Softail Custom 1986-1999
• FXSTD Softail Deuce 2000-2004
• FXSTDI Softail Deuce 2001-2004
• FXSTI Softail Standard 2001-2004
• FXSTS Springer Softail 1988-2004
• FXSTSB Bad Boy 1995-1997
• FXSTSI Springer Softail 2001-2004
• FXWG Wide Glide 1985-1986
• XL1200C Sportster 1200 Custom 1996-2003
• XL1200S Sportster 1200 Sport 1996-2003
• XL883C Sportster 883 Custom 1999-2003
• XL883R Sportster 883 Roadster 2002-2003
• XLH1100 1986-1987
• XLH1200 1988-2003
• XLH883 1986-2003
• XLH883DLX Sportster 883 Deluxe 1986-1995
• XLH883HUG Sportster 883 Hugger 1987-2003
